Superior 55 Inch Pro Series Contemporary Linear Direct Vent Gas Fireplace - DRL3555TEN
Superior 55 Inch Pro Series Contemporary Linear Direct Vent Gas Fireplace - DRL3555TEN
SKU:DRL3555TEN
Free Shipping on $99+ - No Tax
Schedule Phone Consult
Schedule a call with one of our Experts. Pick a time that works for you and we'll be there to answer any questions you have!
The DRL3555 linear direct vent gas fireplace offers a modern, low profile design that is just right for contemporary and transitional spaces. Its sleek opening provides an exceptional view of the gently dancing flames while floor lighting allows you to customize the mood. The DRL3555 is a fully featured fireplace that comes complete with a heat-circulating blower and multi-function remote for the ultimate in comfort and control.
Features
- See all available accessories here
- Up to 28,000 BTUs
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Decorative surrounds available to compliment drywall finished applications
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen
- Black painted interior standard (optional porcelain liner available)
- Platinum crushed glass media included with several optional colors available to customize the look
- Optional driftwood logs and river rocks are a perfect addition for a transitional design
- Mood enhancing floor lighting with six distinctive settings
- Factory installed blower with six speed settings to fine tune your heating needs
- Multi-function remote control included (IPI/CPI, thermostat, flame height, blower, lighting)
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
243/4" | 551/2" | 17" |
Framing Dimensions |
||
Height | Width | Depth |
29" | 557/8" | 18" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct-Vent | |
Vent Size: | 4.5x7.5 | |
Ignition Type: | Electronic | |
Installation Type: | Zero-Clearance | |
Style: | Linear | |
Vent Inner Diameter: | 4.5 Inches | |
Vent Outer Diameter: | 7.5 Inches | |
Weight: | 143 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 28,000 BTU's | 27,000 BTU's |
Min. (BTU/HR): | 19,000 BTU's | 21,000 BTU's |

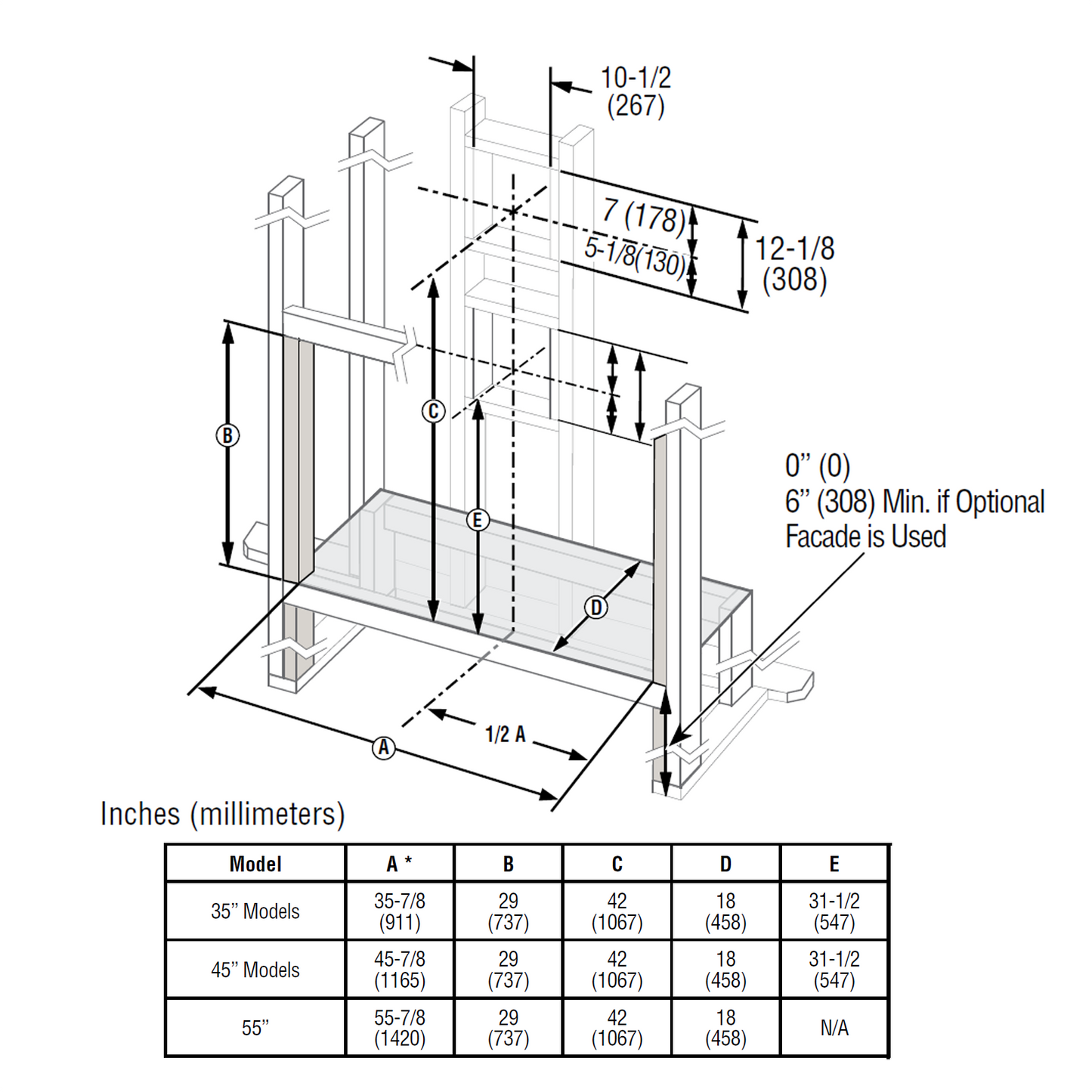

Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Prop 65 All Brands
Please see below for specific product warning labels. For additional information, please visit www.P65Warnings.ca.gov
