Superior 40 Inch Traditional Direct-Vent Gas Fireplace - DRC3040
Superior 40 Inch Traditional Direct-Vent Gas Fireplace - DRC3040
SKU:DRC3040DEN-E
Starting at $156/mo or 0% APR with Affirm. See if you qualify
IN STOCK | USUALLY SHIPS IN 1-3 DAYSFree Shipping on $99+ - No Tax
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.

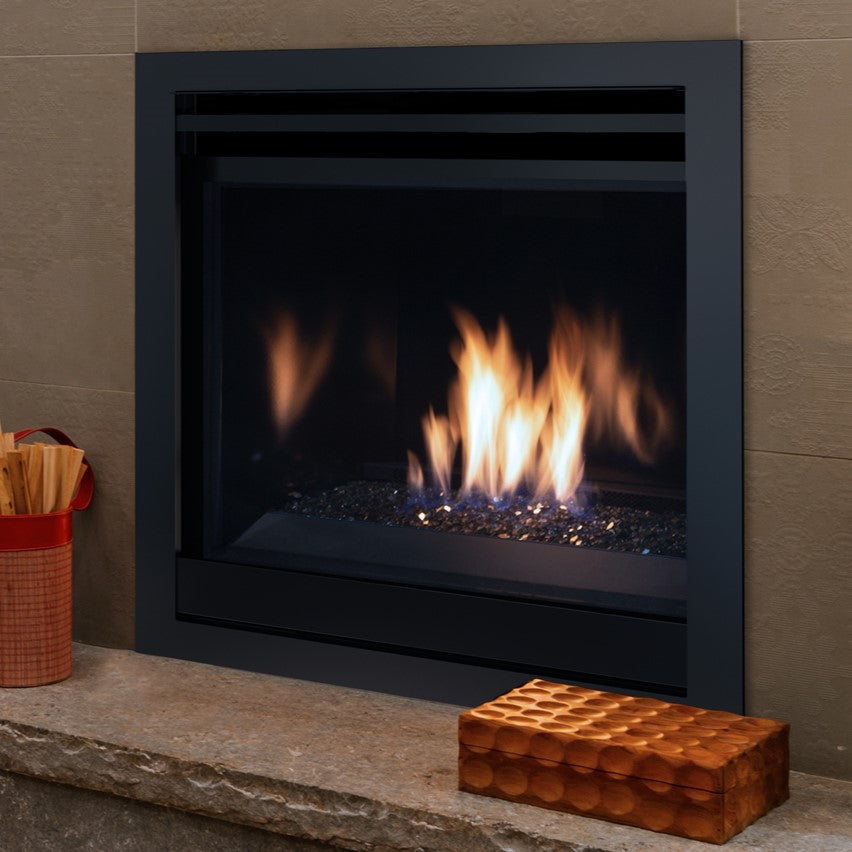

The DRC3000 Series exemplifies transitional style and exceptional value. It comes equipped with contemporary standard features, including a reflective black crushed glass floor media and dancing yellow flames, enhancing its aesthetic appeal. Beyond its sleek and elegant design, the DRC3000 Series boasts powerful heating capabilities, making it the epitome of modern value in home heating solutions.
See all available accessories here
Features
- Mid-size 17” depth saves installed floor space
- Combination top/rear flue configuration
- Electronic ignition with seamless battery backup provides continued operation in the event of a power outage (IPI/CPI switch standard)
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Reflective black crushed glass media included with optional colors available to customize the look

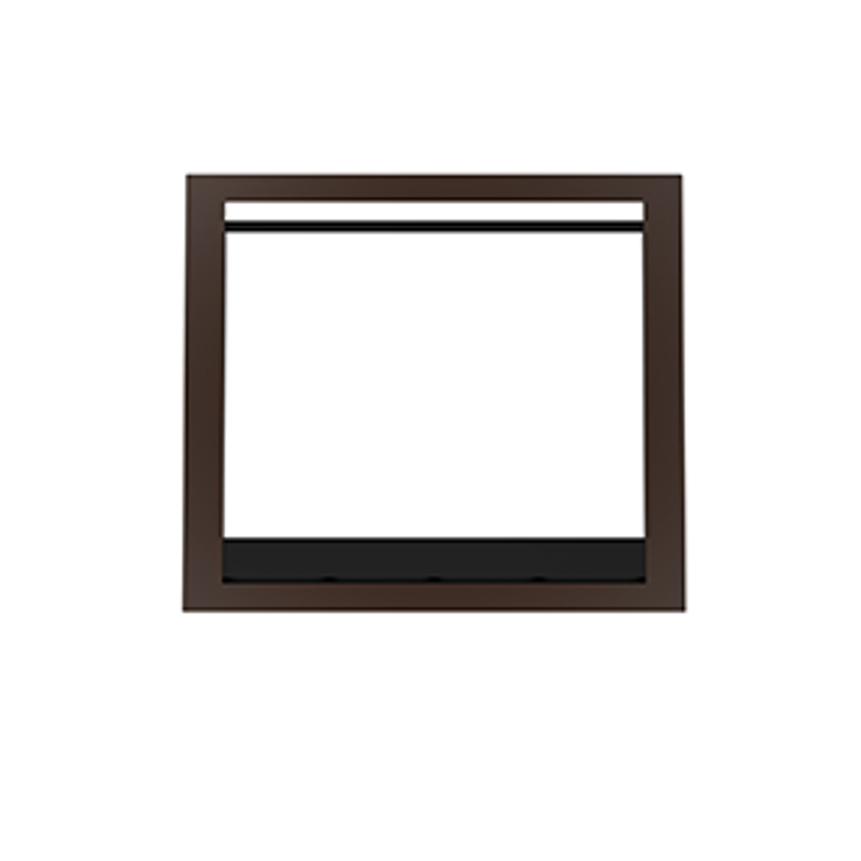

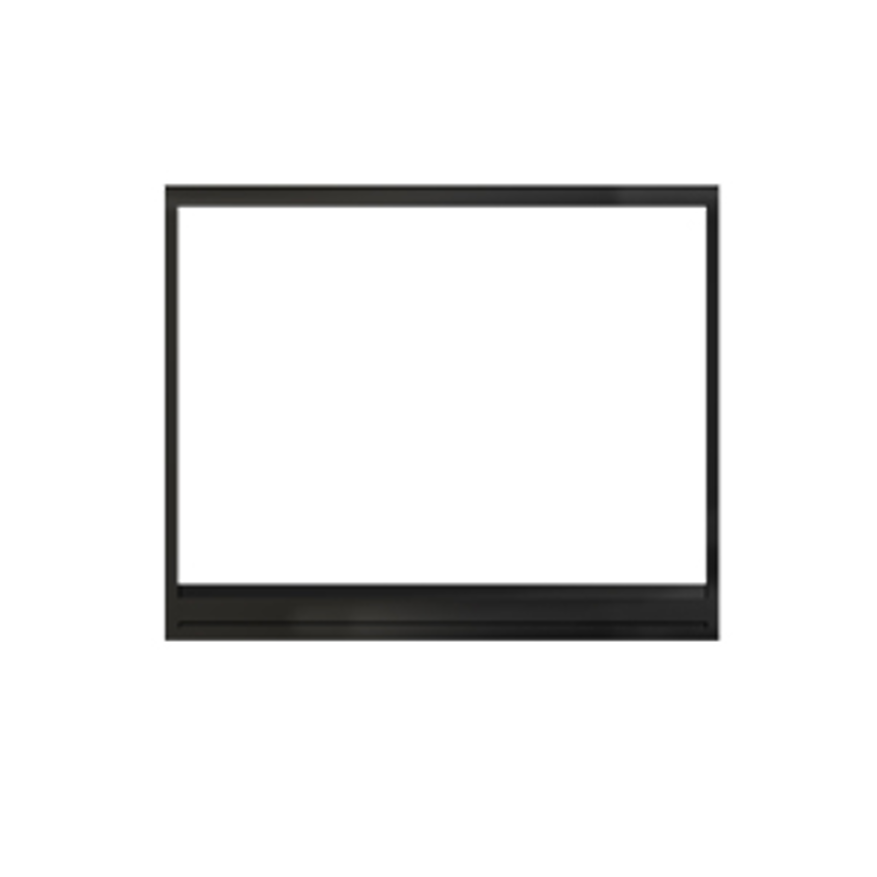

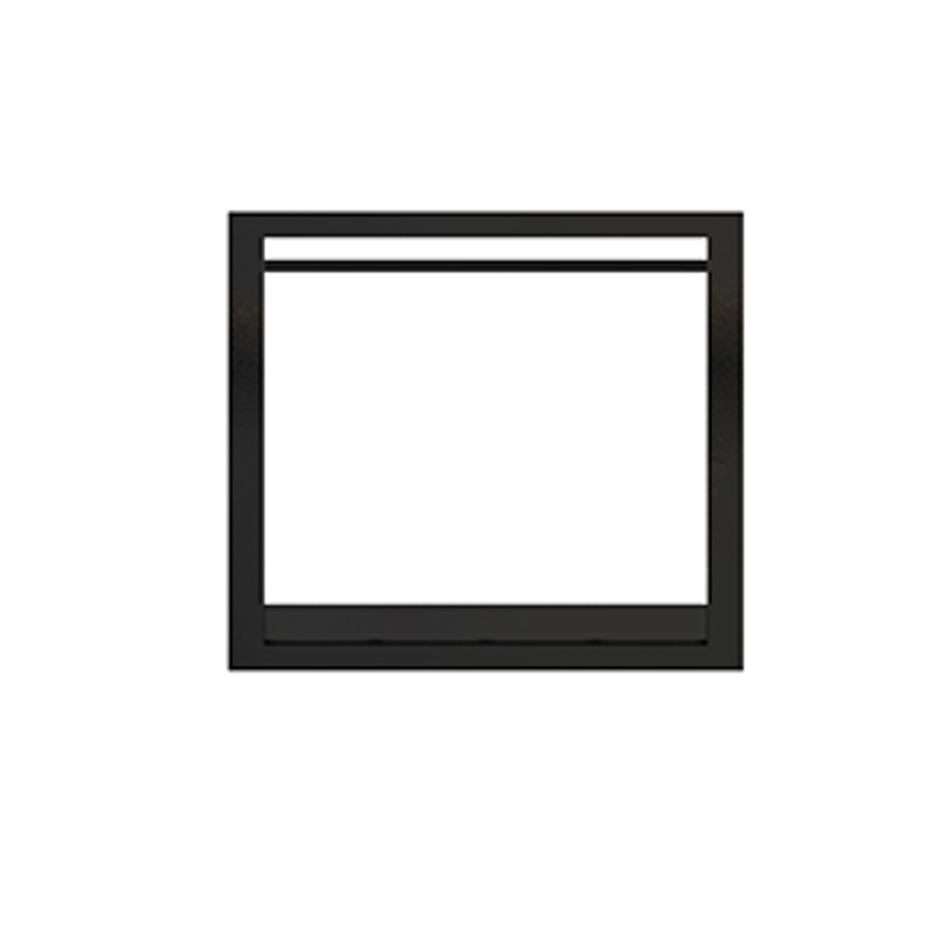

- Face selections include a Vista inside fit façade or one of several Designer overlap fit facades (required)
- Black painted interior (optional liner available)
- Optional blower and touch remote or hand-held remote control available for all models
- Durable textured powder coat finish
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
37 1/8" | 40 1/4" | 17" |
Framing Dimensions |
||
Height | Width | Depth |
41 1/4" | 40 7/8" | 18 1/2" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct-Vent | |
Vent Size: | 4.5x7.5 | |
Ignition Type: | Electronic | |
Installation Type: | Zero-Clearance | |
Style: | Traditional | |
Vent Inner Diameter: | 4.5 Inches | |
Vent Outer Diameter: | 7.5 Inches | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 24000 BTU's | 23000 BTU's |
Min. (BTU/HR): | BTU's | BTU's |

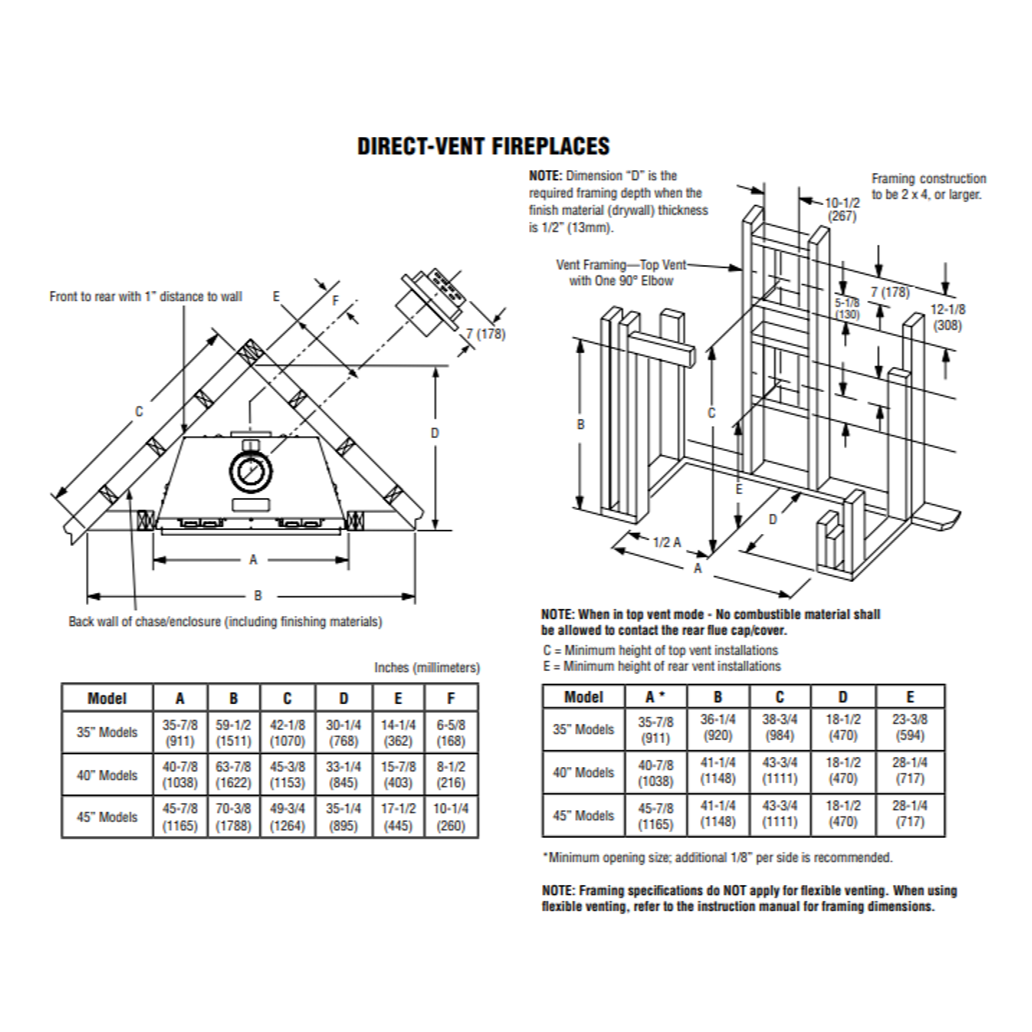

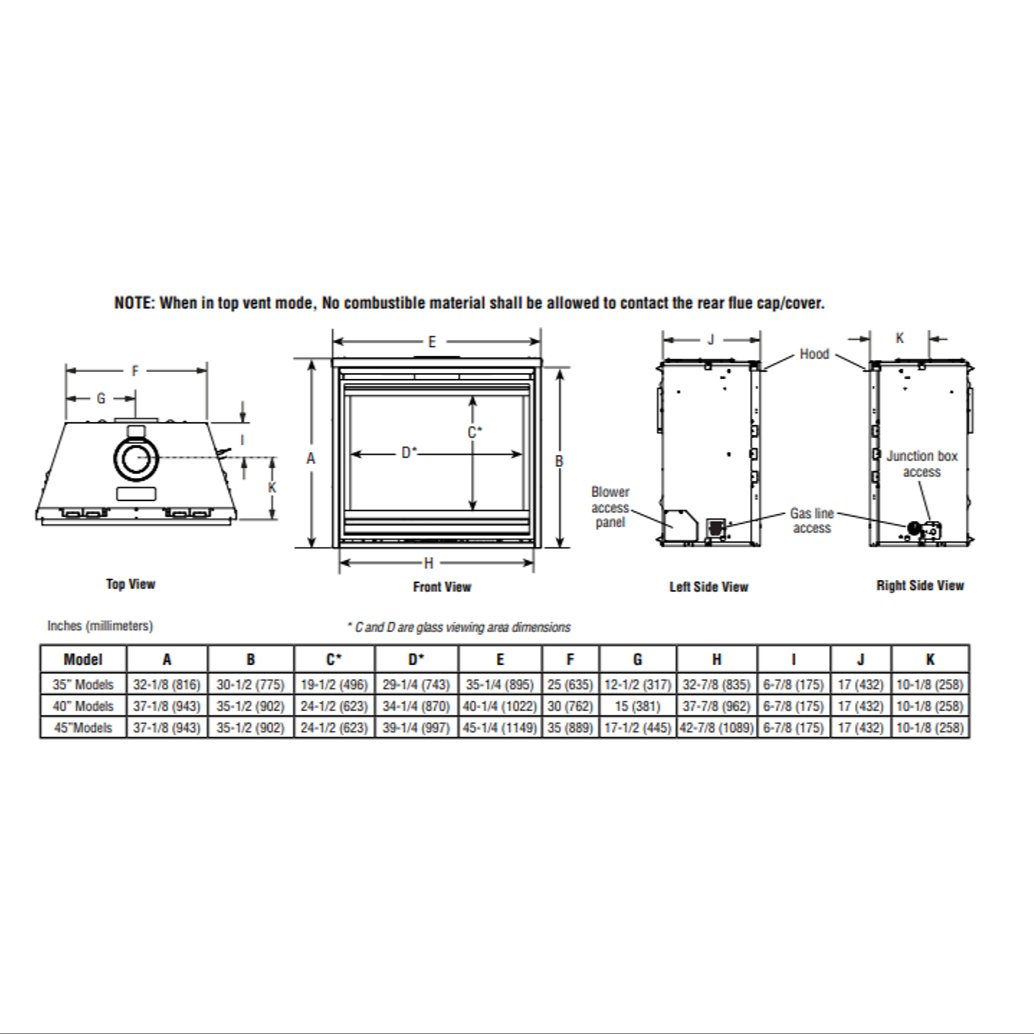

Technical Drawings
Technical Drawings


Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
