Superior 35 Inch Contemporary Linear Direct Vent Gas Fireplace - DRL3535TEN
Superior 35 Inch Contemporary Linear Direct Vent Gas Fireplace - DRL3535TEN
SKU:DRL3535TEN
Free Shipping on $99+ - No Tax
Schedule Phone Consult
Schedule a call with one of our Experts. Pick a time that works for you and we'll be there to answer any questions you have!
Request a Quote
The DRL3535 linear direct vent gas fireplace offers a modern, low profile design that is just right for contemporary and transitional spaces. Its sleek opening provides an exceptional view of the gently dancing flames while floor lighting allows you to customize the mood. The DRL3535 Series is a fully featured fireplace that comes complete with a heat-circulating blower and multi-function remote for the ultimate in comfort and control.
Features
- See all available accessories here
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Black painted interior standard (optional porcelain liner available)
- Platinum crushed glass media included with several optional colors available to customize the look
- Mood enhancing floor lighting with six distinctive settings
- Factory installed blower with six speed settings to fine tune your heating needs
- Multi-function remote control included (IPI/CPI, thermostat, flame height, blower, lighting)
- 20 year limited warranty
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
243/4" | 351/2" | 17" |

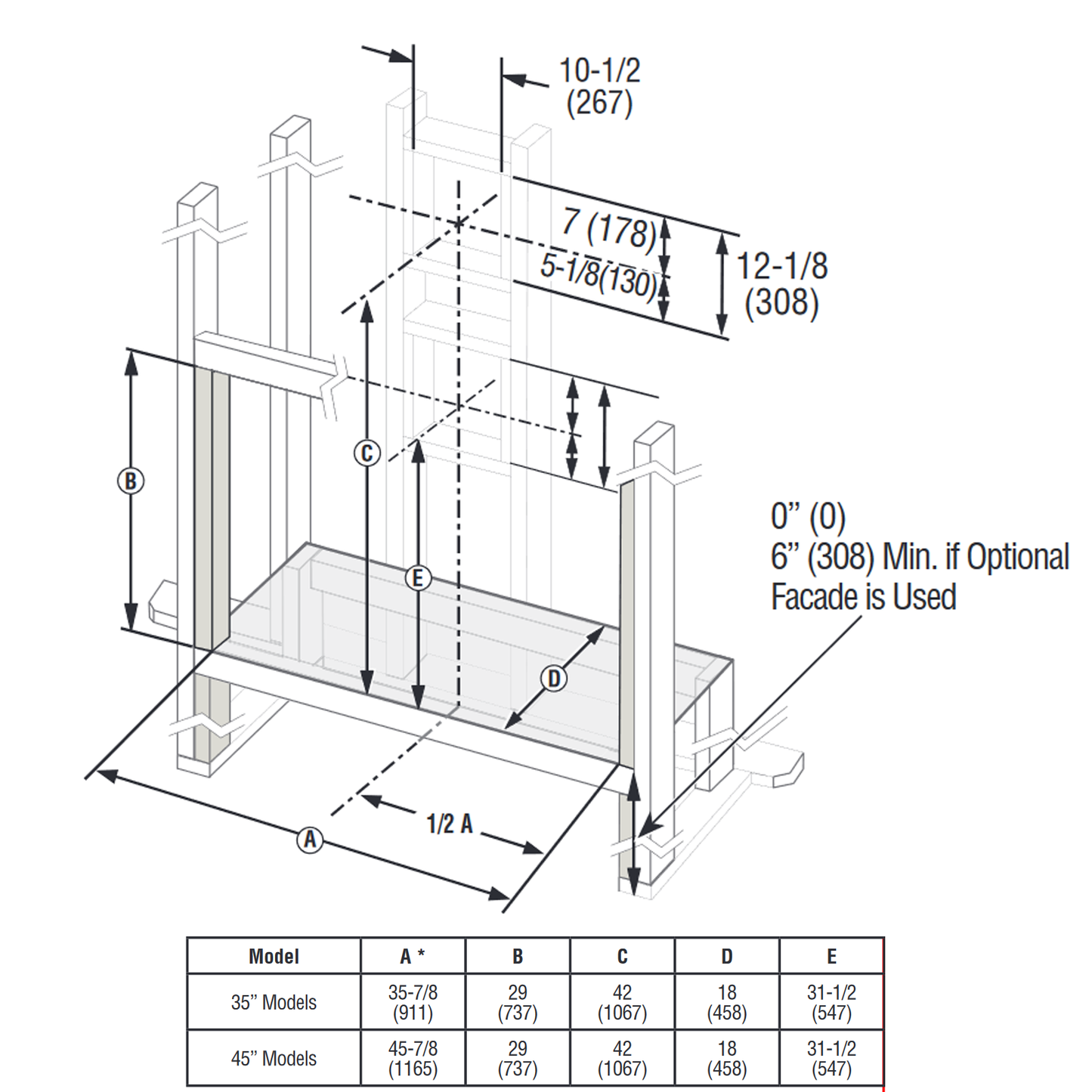

Framing Dimensions |
||
Height | Width | Depth |
29" | 357/8" | 18" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct-Vent | |
Vent Size: | 4.5x7.5 | |
Ignition Type: | Electronic | |
Installation Type: | Zero-Clearance | |
Style: | Linear | |
Vent Inner Diameter: | 4.5 Inches | |
Vent Outer Diameter: | 7.5 Inches | |
Weight: | 101 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 18,000 BTU's | 16,000 BTU's |
Min. (BTU/HR): | 12,000 BTU's | 13,000 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
