Napoleon Vector 50 LV50 Linear Direct-Vent Gas Fireplace - LV50_test_N-2
Napoleon Vector 50 LV50 Linear Direct-Vent Gas Fireplace - LV50_test_N-2
SKU:LV50TESTN-2
Starting at $312/mo or 0% APR with Affirm. See if you qualify
IN STOCK | USUALLY SHIPS IN 1-3 DAYSFree Shipping on $99+ - No Tax
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Newly updated, the Napoleon Vector 50 is in a class of it's own. Customize the look with a trim kit or surround in traditional black or modern stainless steel. The multicolor LED lights which shine through the glass embers create endless display options through the full spectrum range. Control the flame height and lights using either the included remote or download the eFire app to your smart phone for access to even more options! The Vector 50 has some of the best features available today. Let us help you put together everything you need to complete your installation.
Vector Linear Gas Fireplace Brochure
Features
- See all available accessories here
- Black Premium Clean Face Safety Barrier included
- Remote Control and updated eFIRE bluetooth app included
- Up to 36,000 BTU's
- Available in Natural Gas and Propane
- Standard NIGHT LIGHT system adds a gentle glow to the room
- MIRRO-FLAME Porcelain Reflective Radiant Panels installed
- Divinity flame pattern provides heightened peaks and valleys
- eFIRE Remote App - Total control of your fireplace from the convenience of your mobile device
- Easy access air control for fast and precise air shutter adjustments
- Fuel saving electronic ignition with battery back-up
- Optional media includes: Nickel Stix, Mineral Rock Kit, Shore and Beach Fire Media Kits, Glass Ember Media and Glass Beads in various colors!
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
413/16" | 695/16" | 197/8" |

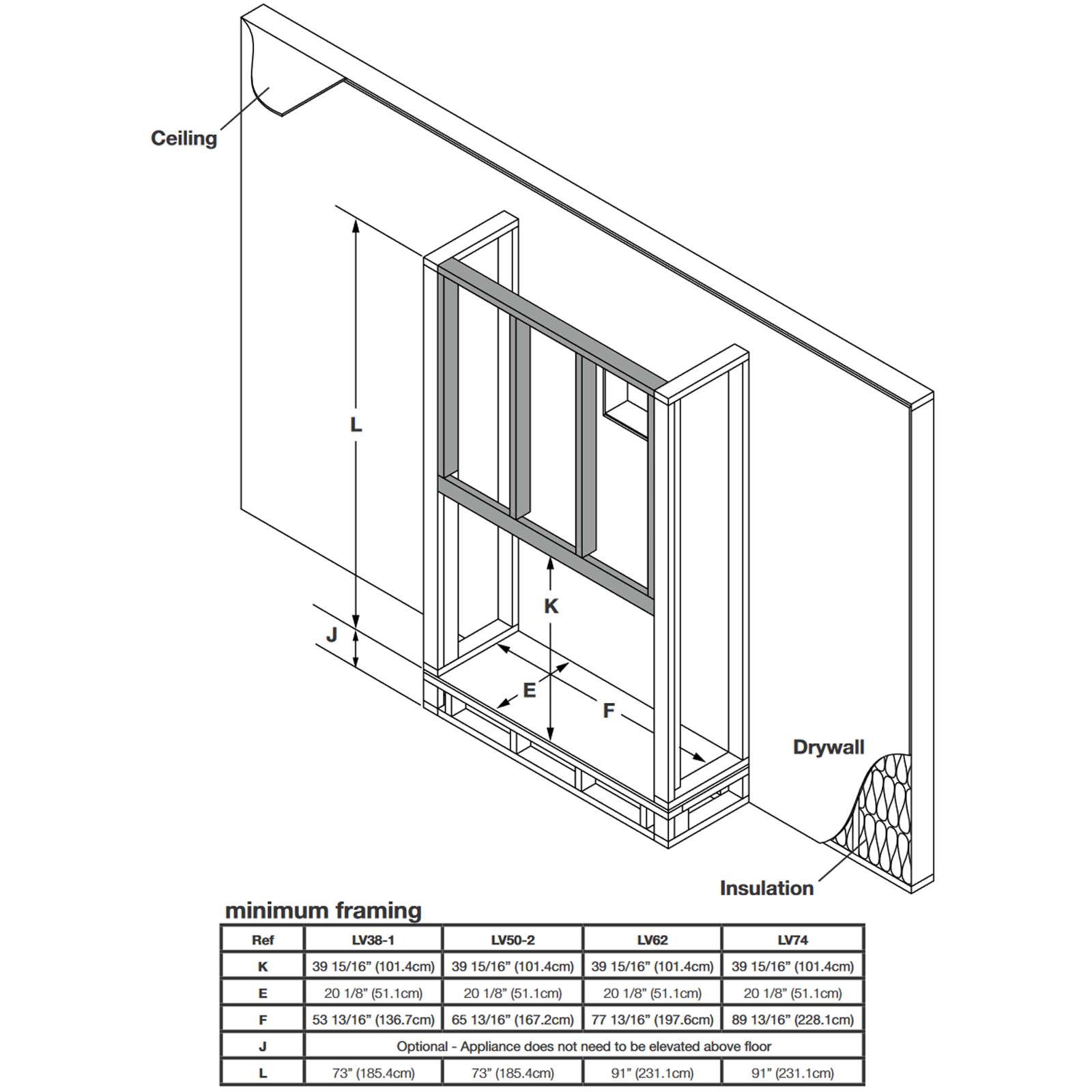

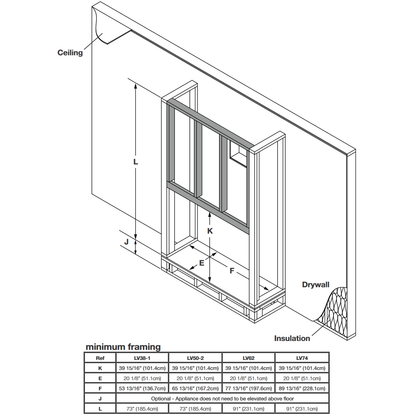

Framing Dimensions |
||
Height | Width | Depth |
3915/16" | 6513/16" | 201/8" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct-Vent | |
Vent Size: | 5x8 | |
Ignition Type: | Electronic | |
Installation Type: | Zero-Clearance | |
Style: | Linear | |
Vent Inner Diameter: | 5 Inches | |
Vent Outer Diameter: | 8 Inches | |
Weight: | 370 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 36,000 BTU's | 32,000 BTU's |
Min. (BTU/HR): | 25,000 BTU's | 30,000 BTU's |

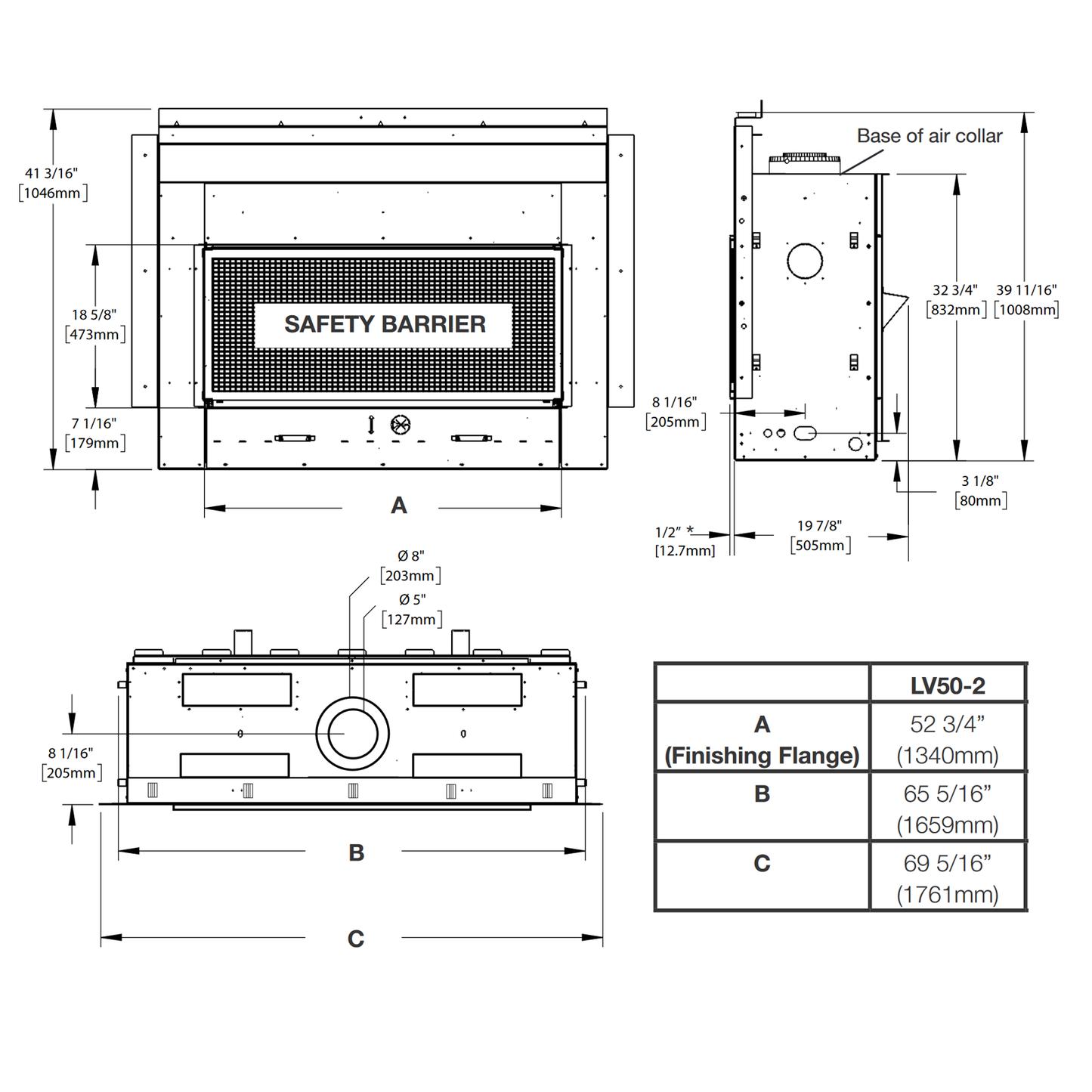

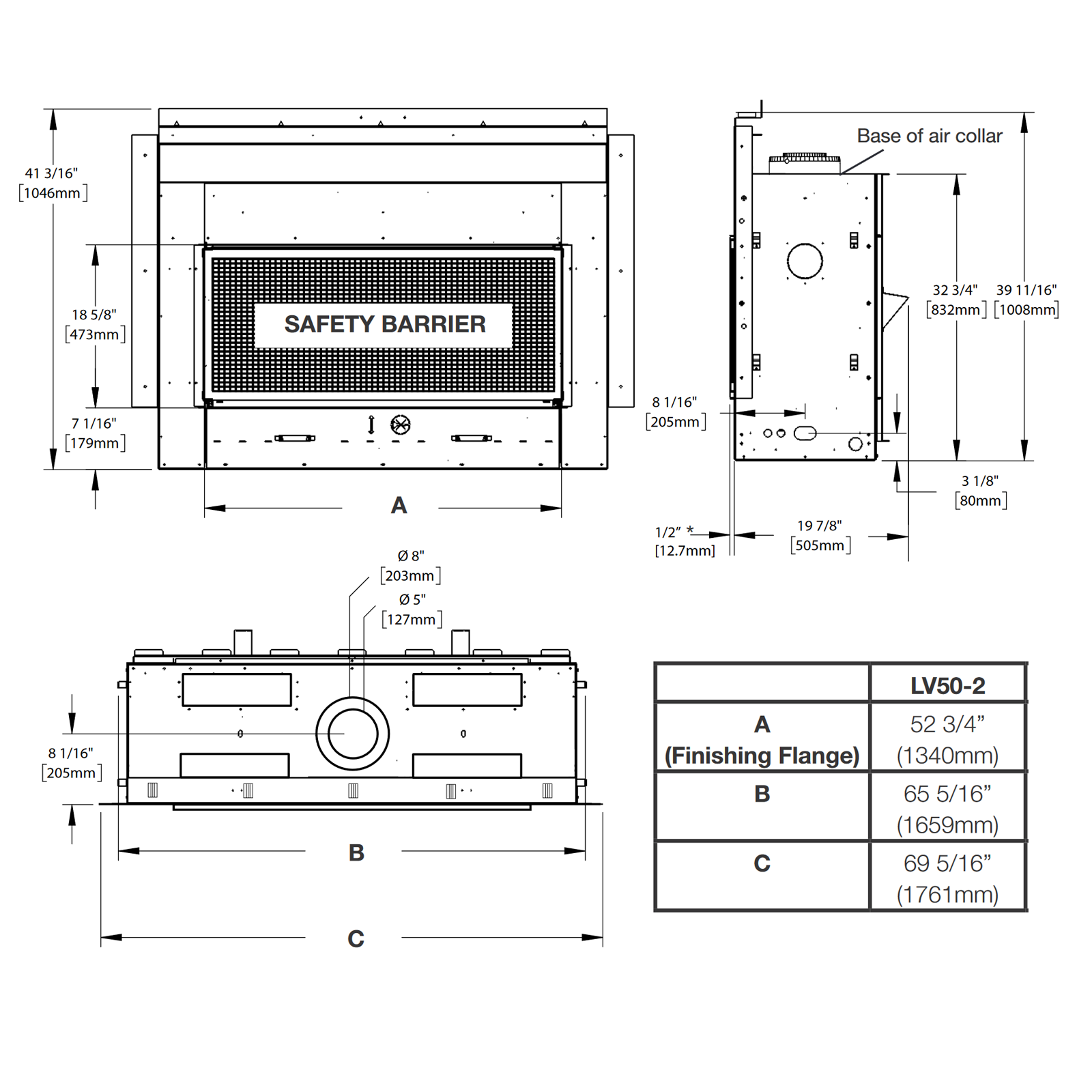

Technical Drawings
Technical Drawings


Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
