Napoleon GD-201 4x7 Wolf Steel Periscope (Snorkel) - GD201
Napoleon GD-201 4x7 Wolf Steel Periscope (Snorkel) - GD201
SKU:GD-201
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Schedule Phone Consult
Request a quote for the best pricing available.
Request a Quote
Periscope for use of a horizontal through-the-wall termination for wall penetration below grade.
This termination is used when the wall penetration is too close to ground level for safe venting or when using the rear vent of a gas unit and it requires additional height to improve draft.
Click here to see the Napoleon Venting Components Brochure

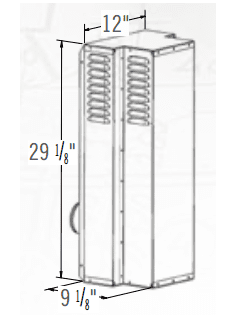

Dimensions
| Width | 12" |
| Height | 29 1/8" |
| Length | 9 1/8" |
Dimensions
Dimensions
Dimensions |
Specifications
Specifications
Specifications |
||
Product Details |
||
| Weight: | 15 lbs. | |
|---|---|---|
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
