Napoleon Ascent BL36 Top Vent Direct Vent Linear Gas Fireplace - BL36
Napoleon Ascent BL36 Top Vent Direct Vent Linear Gas Fireplace - BL36
SKU:BL36NTE-2
Free Shipping on $99+ - No Tax
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Schedule Phone Consult
The Napoleon Ascent Linear 36 Gas Fireplace is perfect for homeowners, re-modelers and custom builders. With a multitude of designer options, the Ascent Linear 36 can be dressed to match an existing room décor or can be stylized to be a focal point in your room. The Ascent Linear 36 comes standard with an exclusive Topaz crushed glass ember bed that can be changed out to a completely new look with the Shore Fire, Beach Fire and Mineral Rock kits which include a variety of rocks, sand, logs and vermiculite.
Ascent Linear Gas Fireplaces Brochure
Features
- See all available accessories here
- Topaz crushed glass embers included
- Flex connector complete with shut off
- SIT Proflame II System (remote not included)
- High Quality Safety Barrier Included
- Optimized Burner Performance (for all vent and fuel configurations)
- Optional remote control and eFIRE app available
- Optional Porcelain Reflective Radiant Panels
- Optional premium blower kit
- Optional media kits: Beach Fire, Shore Fire and Mineral Rock mix-n-match kits
- Top Vent
- Natural gas or propane
- Electronic
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 391/16" | 3515/16" | 153/4" |

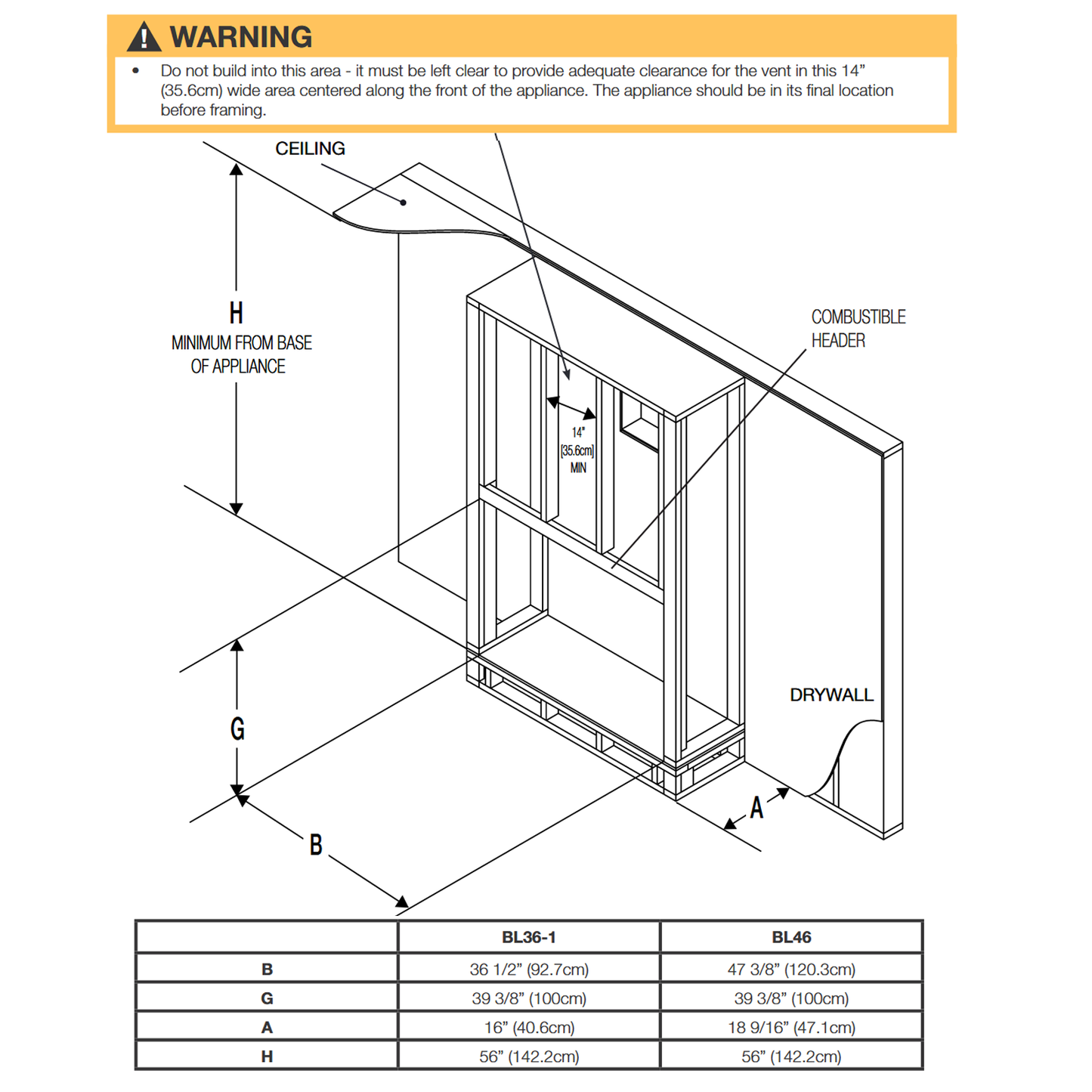

Framing Dimensions |
||
| Height | Width | Depth |
| 393/8" | 361/2" | 16" |
Specifications
Specifications
Specifications |
||
Product Details |
||
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Vent Size: | 4x7 | |
| Ignition Type: | Electronic | |
| Installation Type: | Zero-Clearance | |
| Style: | Linear | |
| Vent Inner Diameter: | 4 Inches | |
| Vent Outer Diameter: | 7 Inches | |
| Weight: | 90 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 17,500 BTU's | 16,000 BTU's |
| Min. (BTU/HR): | 14,250 BTU's | 12,500 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
