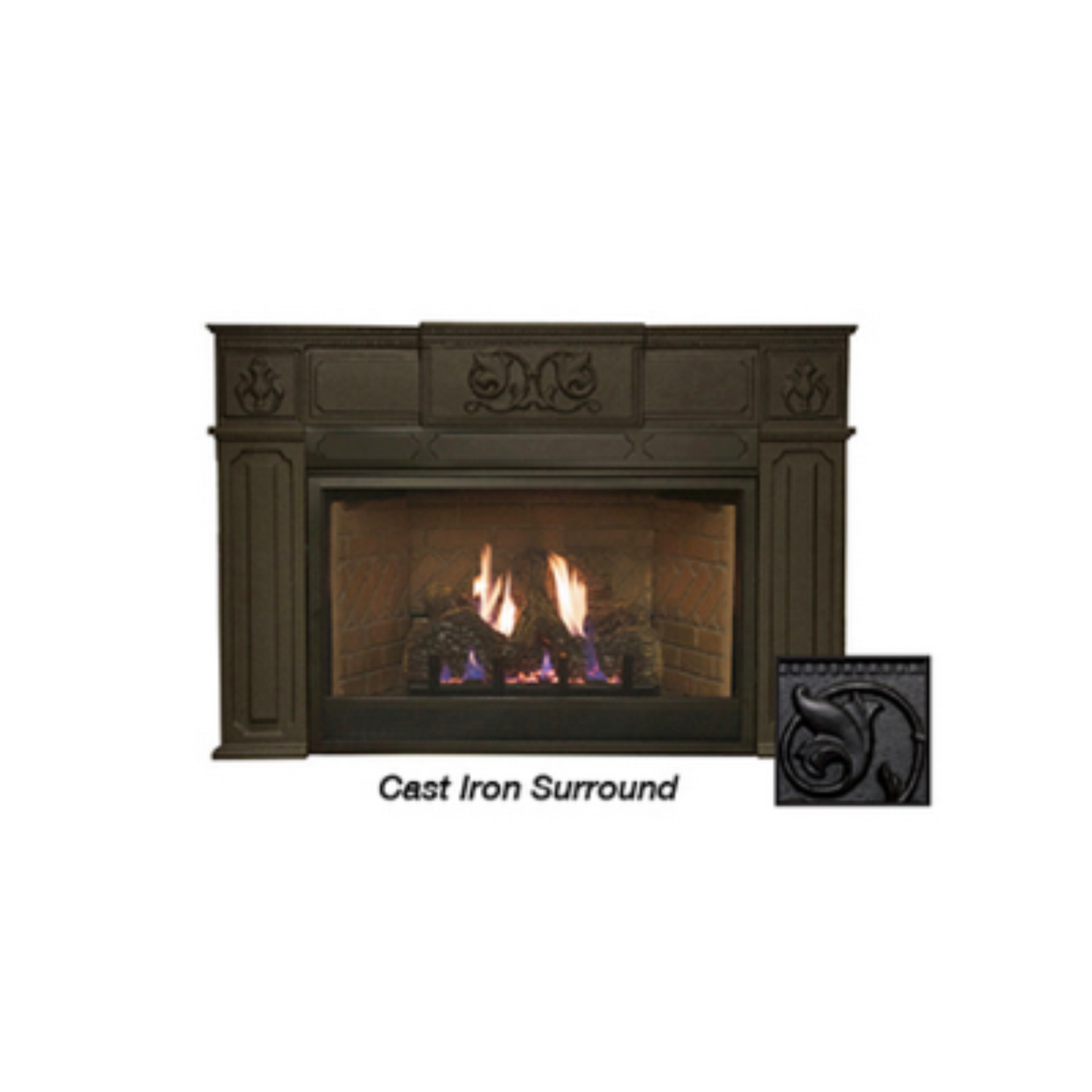

Empire Innsbrook Medium Vent Free Gas Insert - VFPC28
Empire Innsbrook Medium Vent Free Gas Insert - VFPC28
SKU:VFPC28IN33N
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Schedule Phone Consult
Request a quote for the best pricing available.
Request a Quote
Innsbrook Vent-Free Medium features Banded Brick Liners, with hand-painted ceramic fiber logs nestled atop the variable-flame burner, to create an exceptionally attractive traditional fireplace. The unique Slope Glaze Burner produces natural flickering flames.
Empire Innsbrook Gas Insert Brochure
Features
- See all available accessories here
- For use within a masonry fireplace
- Up to 28,000 BTUs
- Includes Log Set, Banded Brick Ceramic Liner, Blower
- Fine mesh barrier screen comes standard
- Lights at the flick of a switch to produce consistent, reliable heat, even when electric power fails
- Optional thermostat, wireless wall thermostat, remote control, or thermostat remote control, and enjoy all the comfort of a warm fire without the mess and hassle
- DS surrounds do not include a bottom cover. For in-wall installation (not on a hearth) order a custom 4-sided surround.
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 221/8" | 321/4" | 1415/16" |
Framing Dimensions |
||
| Height | Width | Depth |
| 223/8" | 301/2" | 15" |
Specifications
Specifications
Specifications |
||
Product Details |
||
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Vent-Free | |
| Ignition Type: | Millivolt or Electronic | |
| Installation Type: | Insert | |
| Style: | Traditional | |
| Weight: | 78 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 28,000 BTU's | 28,000 BTU's |
| Min. (BTU/HR): | 20,000 BTU's | 23,000 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
