Dimplex Winslow 48 Linear Wall-Hanging Electric Fireplace - SWM48
Dimplex Winslow 48 Linear Wall-Hanging Electric Fireplace - SWM48
SKU:SWM4820
Starting at $59/mo with Affirm. See if you qualify
IN STOCK | USUALLY SHIPS IN 1-3 DAYSFree Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Request a quote for the best pricing available.

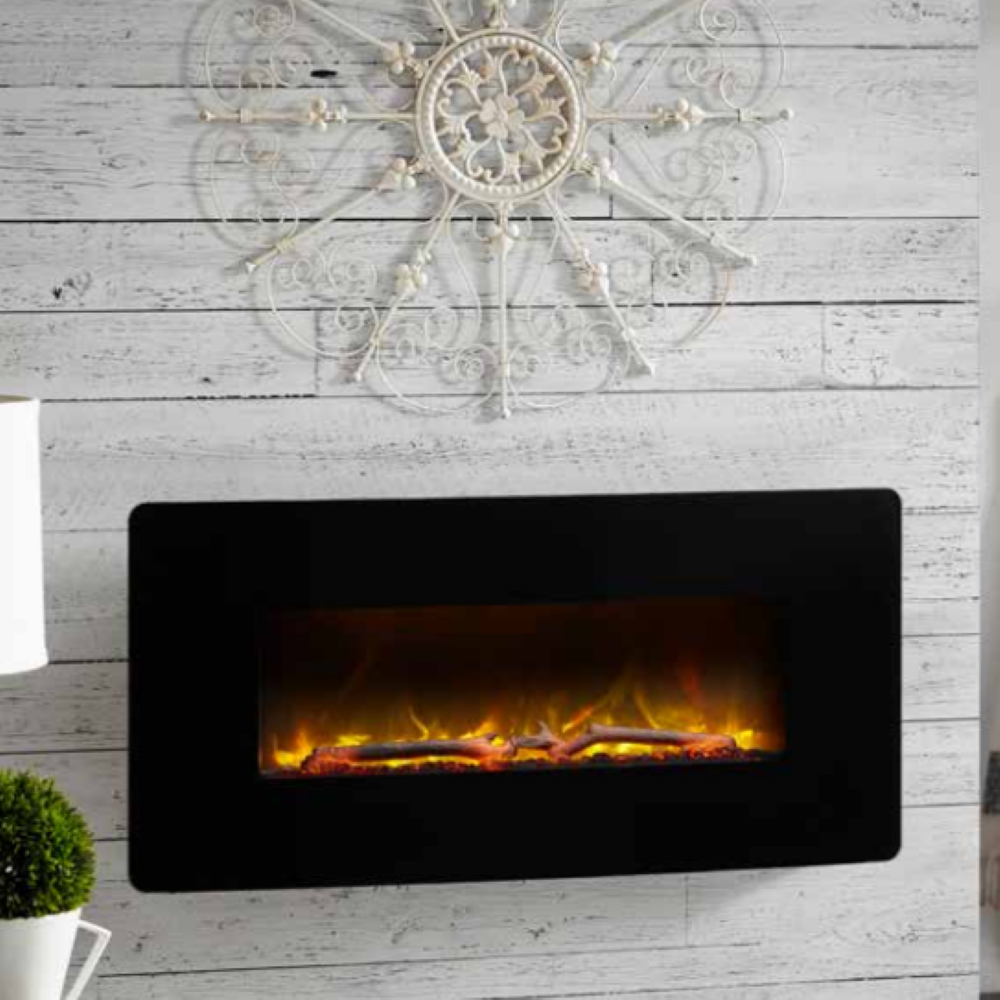

The Dimplex Winslow Wall-Mount Fireplace is the perfect unit for any space. It can either be mounted on a wall, or you could place it on a table with the included table stand. With heat venting at the bottom of the Dimplex Winslow 48, you can have peace of mind that your electronics are safe above. Switch between three included bed options - go contemporary with vibrant crystals, traditional with logs or choose a more adaptable option with pebbles for a traditional or contemporary look. With the largest view window available for the Winslow series, this unit is bound to make a dazzling impact on your space. The realistic flames can be complemented by the illuminating glow behind the Winslow 48” Electric Fireplace creating a cozy feeling with the touch of a button. To further allow you to customize the look and feel of your electric fireplace, you can change the color of the ember bed, logs and flames. Sleek and sophisticated, the Dimplex SWM4820 is a unit that will provide all you could ever need for years to come.
Features:
- Versatility to be installed on the wall or on the included stand
- Curved glass creates a close to wall look from the side
- Side strip lighting provides a color glow behind the unit
- Heat rises from the bottom of the unit allowing for safe installation of electronics above fireplace
- Three bed options: crystals, logs, or pebbles
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
181/8" | 48" | 5" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Electric | |
---|---|---|
Vent Type: | Vent-Free | |
Installation Type: | Wall-Hanging | |
Style: | Linear | |
Weight: | 220 lbs. | |
BTU's @ 120V: | 4777 BTU's | |
Amps: | 12 Amps | |
Watts: | Max 1400W |
Technical Drawings
Technical Drawings


Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
- Expenses related to shipping and transportation for replacement parts or units.
To Open the Warranty Policy in another Window => Click Here
