Dimplex 30 Inch Revillusion Built In Electric Firebox - RBF30

Dimplex 30 Inch Revillusion Built In Electric Firebox - RBF30

SKU:500002388

Regular price $1,959.99 USD
Regular price Sale price $1,959.99 USD
Sale Sold out

IN STOCK | USUALLY SHIPS IN 1-3 DAYS
Free Shipping on $99+ - No Tax

YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.

REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.

Need help? Schedule a call with one of our Experts.

Request a quote for the best pricing available.

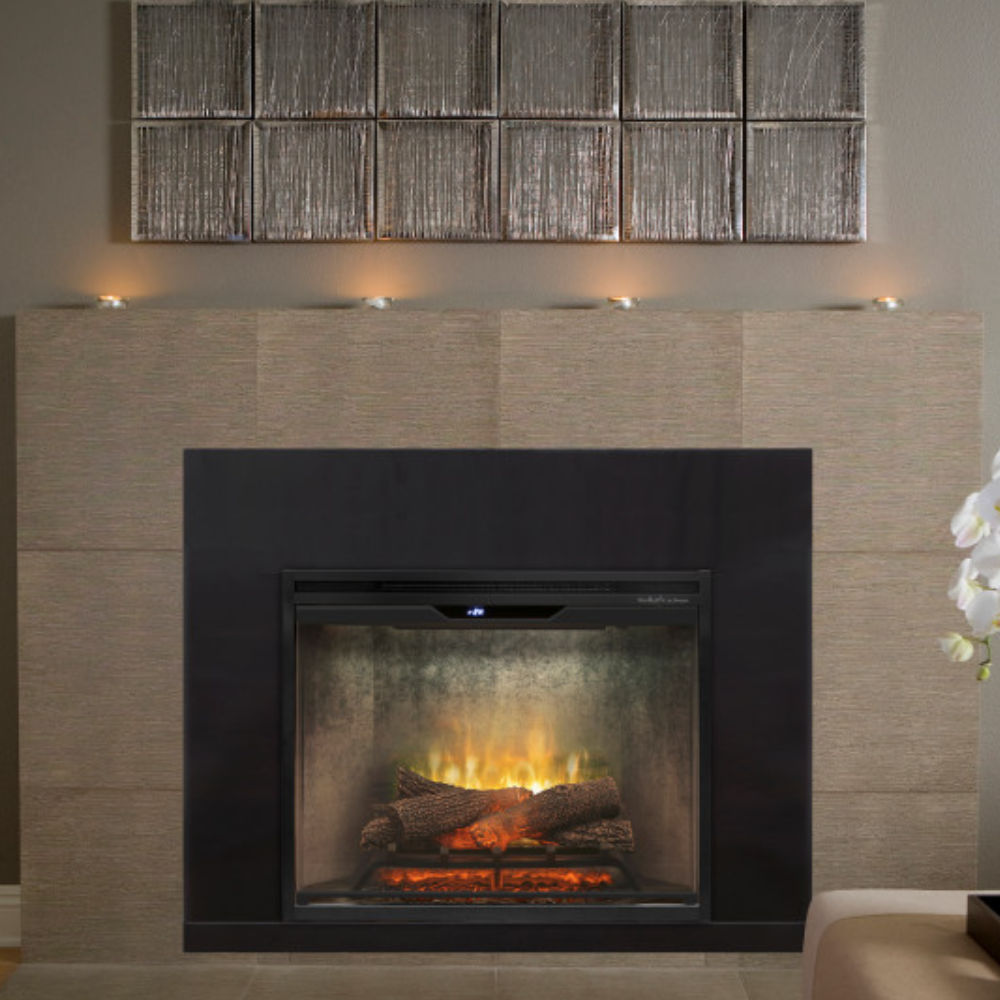

Revillusion is a completely new way of looking at fireplaces, and changing the standard for electric. A clear view through the life like flames, to the full brick interior, captures the charm of a wood-burning fireplace. Enjoy the look of a fireplace cut straight from the pages of a magazine by choosing Revillusion; clearly a better fireplace.

Dimplex RBF30 Brochure

Features

  • Revillusion Flame Technology- Flames are larger, brighter and more random, appearing from within the logs.
  • ThruView Full-depth Design - See clear through the flames to the back of the firebox for a more authentic experience.
  • Mood Lighting - Customize the firebox glow with a choice of warm hues, plus midnight mode.
  • Color Enhancement - Adjust the flame base color to red or blue.
  • Realogs Plus - A full grate of life-size hardwood-cast logs, tiered for greater depth.
  • Full Surround Firebox - More authentic day or night; 270-degree surround with natural soot markings.
  • Brightness and Flicker - Adjust light level to suit the room and choose flicker effect for enhanced firelight.
  • Ambient Light Sensor - Automatically adjusts firebox light to suit the room day to night.
  • Quick and Easy Installation - Simply frame, wire and finish - no venting, gas lines or safety screens.
  • Primary Heat - Option to use 240 volt supply for up to 8,800 BTU - use as part of primary heating plan; heater also operates without flame and can be deactivated.
  • All-season Flames - Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.
  • Direct-wire - Designed to be direct-wired to a 120, 208 or 240 volt circuit for a seamless look (optional plug kit available).
  • Low Carbon Footprint - The most sustainable fireplace option; no emissions and 100% efficient.
  • Herringbone or Weathered Concrete
  • Comes with single pane glass plug kit and remote control

Dimensions

Dimplex 30 Inch Revillusion Built In Electric Firebox - RBF30 Dimensions

Dimensions

Actual Dimensions

Height Width Depth
265/8" 311/8" 12"

Framing Dimensions

Height Width Depth
263/16" 305/8" 12 1/2"

Specifications

Dimplex 30 Inch Revillusion Built In Electric Firebox - RBF30 Technical Details

Specifications

Product Details

Fuel Type: Electric
Vent Type: Vent-Free
Installation Type: Zero-Clearance
Style: Traditional
Weight: 50 lbs.
BTU's @ 120V: 5,000 BTU's
BTU's @ 240V: 8,794 BTU's
Amps: 10.83 Amps
Watts: Max 2575W
High Temp Setting: 99°F
Low Temp Setting: 41°F
No Heat Setting: Yes

Technical Drawings

Installation Manual

To Open the Installation Manual in another Window => Click Here

Warranty Policy

Exclusions from Warranty Coverage

  • Provision of warranty services at the customer's location (on-site or in-home).
  • Costs associated with removing parts prior to replacement.
  • Installation of replacement parts or complete units.
  • Labor expenses for diagnosing issues with potentially defective components.
  • Initial installation costs and labor associated with installing warranty replacement parts.
  • Expenses related to shipping and transportation for replacement parts or units.
  • To Open the Warranty Policy in another Window => Click Here
